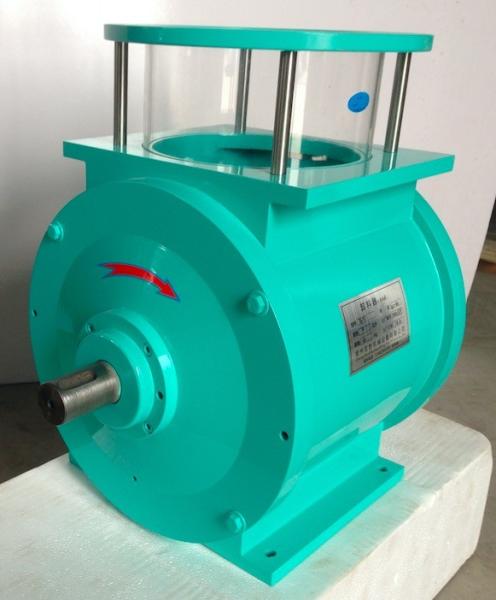

To be used under negative pressure conveying cyclone, flow-through rotary airlock valve adopts detached foundry, of which all components have been precisely processed before assembling. It has exquisite configuration and anti-blocking design, which can solve material stuck problem without dismantling. The hole at the end of bearing is for observing sealing efficiency at any time, and the observation window on the top is for following up the process of discharging. This type of valve offers series connection solution, using single power to drive multi-valves. Ultimately, it can save energy and reduce purchasing cost.
Product Name | Rotary Airlock Valve |
Material | stainless steel |
Flange Type | Round or Square |
Dimension | Refer to the drawing |
Clearance | 0.08-0.12mm |
Blades | 8-10 |
Bearing | SKF |
Motor | SEW, Siemens, Guomao, Evergear, etc |
![]() |
